- 5-axis gantry machine with unique closed crossbar design BOX-IN-BOX

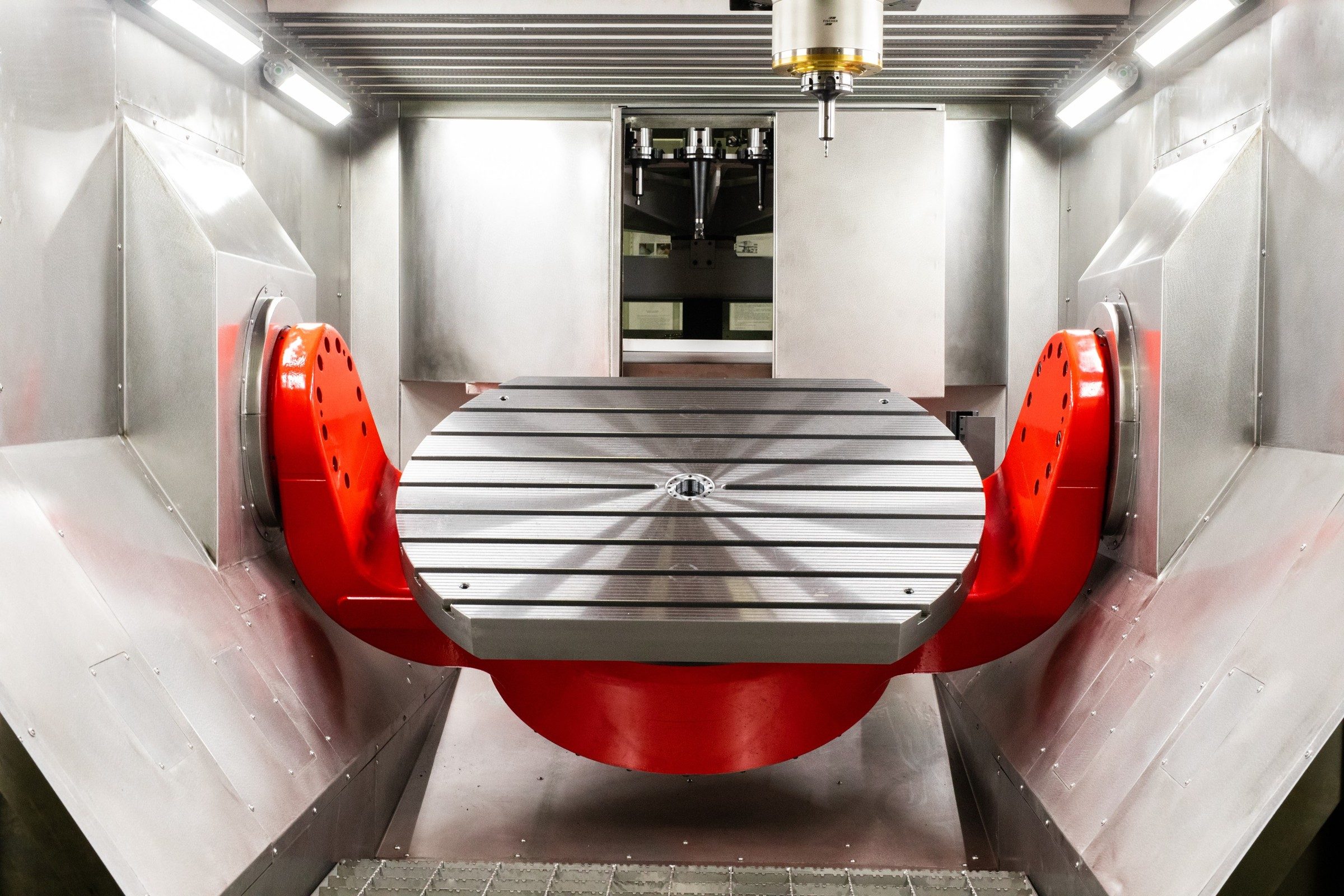

- tilting-rotary table with torque motors and clamping area diameter of 1,200 mm
- maximum workpiece weight 2,500 kg
- stainless steel casing of machine interior
- ergonomic layout – easy operation and comfortable access to working area
- direct measuring in all axes
- machine vibration measuring and monitoring
- quick machine set-up and commissioning – machine is transportable in one piece
- excellent price/performance ratio
- modern design

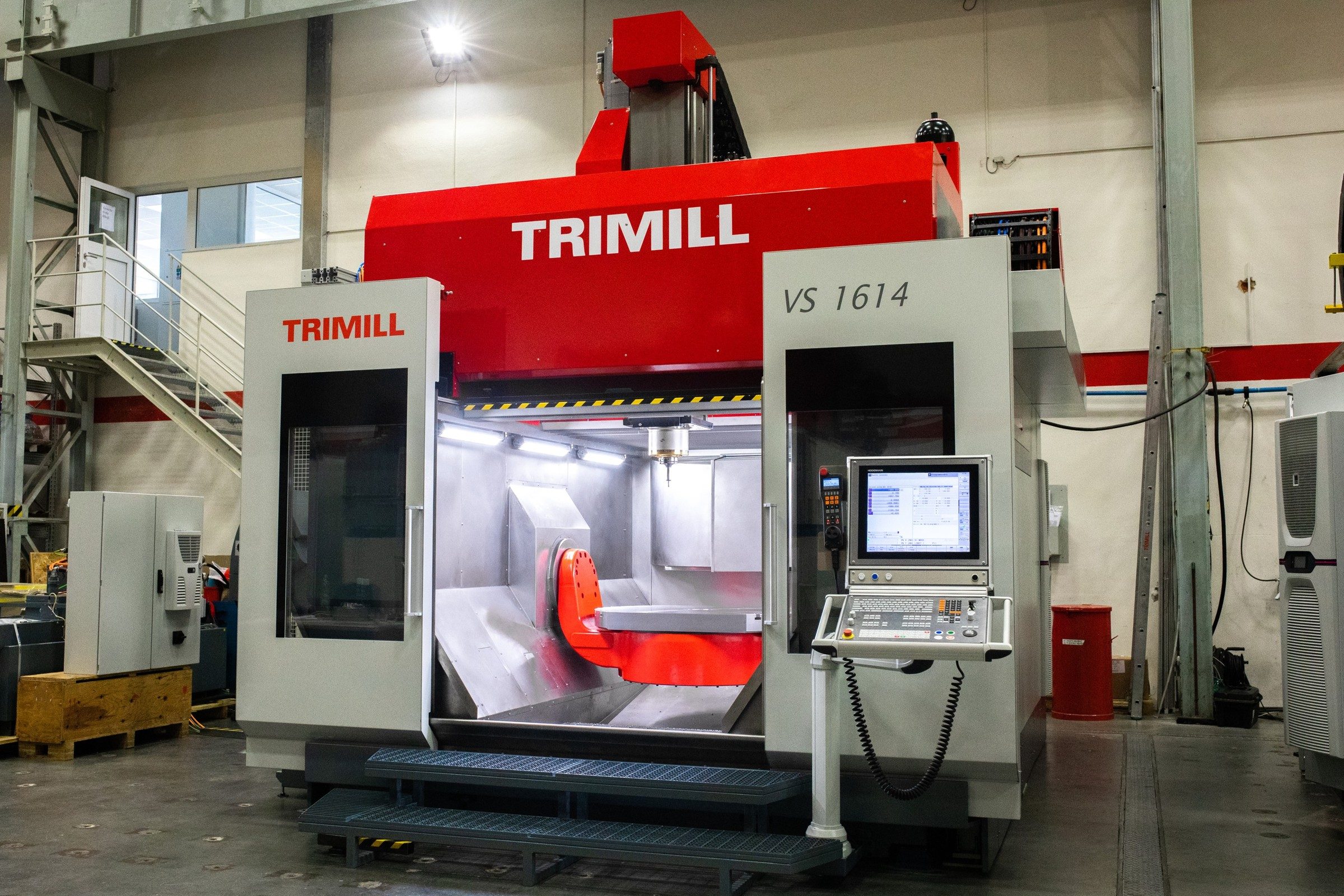

VS 1614
Work area:
- X: 1.600 mm
- Y: 1.400 mm
- Z: 800 mm
Specification:
- CNC control system Heidenhain iTNC 640 HSCI
- High frequency spindle 25 kW, 200 Nm, 12.000 1/min, HSK-A100
- Tool cooling & lubrication with supply via spray nozzle
- HEIDENHAIN workpiece probe
- BLUM Laser probe for tool measuring with automatic cover
- Automatic tool changer 32, platetype
- Chip removal system
- TRIMILL Kinematics
- TRIMILL Teleservice
DELIVERY : JANUARY 2024
Downloads
Technical data
| Travels | |
|---|---|
| X-axis [mm] | 1.600 |
| Y-axis [mm] | 1.400 |
| Z-axis [mm] | 800 |
| Optional spindle / head | |
|---|---|
| Power (S1/100%) [kW] | 32 |
| Power (S6/40%) [kW] | 40 |
| Torque (S1/100%) [Nm] | 306 |
| Torque (S6/40%) [Nm] | 390 |
| Speed [1/min] | 14.000 |
| Tool holder | HSK - A 100 |
| Optional spindle / head | |
|---|---|
| Power (S1/100%) [kW] | 29 |
| Power (S6/40%) [kW] | 38 |
| Torque (S1/100%) [Nm] | 69 |
| Torque (S6/40%) [Nm] | 91 |
| Speed [1/min] | 24.000 |
| Tool holder | HSK - A 63 |
| Other | |
|---|---|
| Clamping surface [mm] | Ø 1.200 mm |
| Workpiece weight [kg] | 2.500 kg |
| Feed rate [mm/min] | 30.000 |
| Acceleration [m/s2] | 3 |
| Machine weight [kg] | 32.000 |
