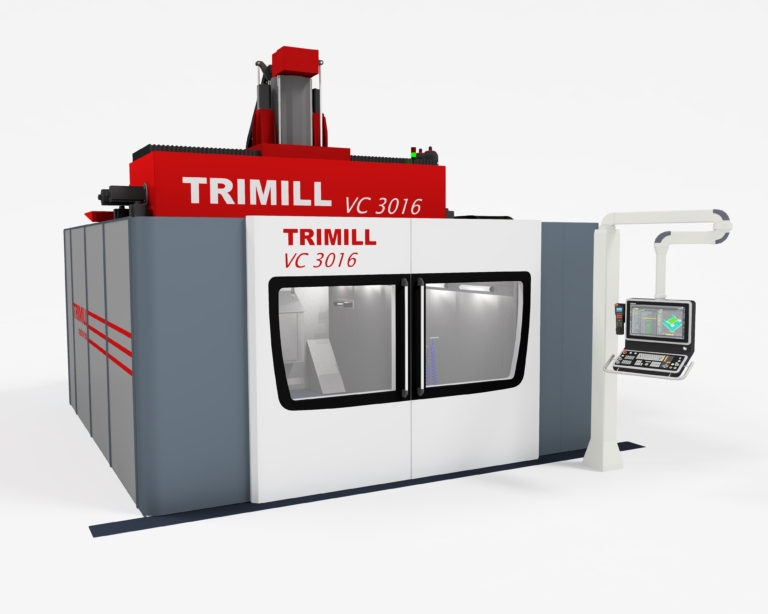

VC 3016
- Rigid 3-axis machine, purpose-built for machining press tools, moulds and dies
- Gantry type design with top gantry
- Unique closed crossbar (X-axis) and cross-support design with internally mounted quadruple-guided slide (Y- and Z-axis)
- Constant machining results due to uniform thermosymmetric guiding
- Rigidly seated workpiece allows for high surface quality
- High production productivity – machine is designed for roughing and finishing in single clamping
- Very compact machine, large working space with relatively small footprint
- Quick machine set-up and commissioning – machine is transported in one piece
- Ergonomic layout – easy to operate and access working area
- Convincing price/performance ratio
Downloads
Technical data
| Travels | |
|---|---|
| X-axis [mm] | 3000 |
| Y-axis [mm] | 1600 |
| Z-axis [mm] | 1200 |
| Optional spindle / head | |
|---|---|
| Power (S1/100%) [kW] | 32 |
| Power (S6/40%) [kW] | 40 |
| Torque (S1/100%) [Nm] | 306 |
| Torque (S6/40%) [Nm] | 390 |
| Speed [1/min] | 14.000 |
| Tool holder | HSK - A100 |
| Optional spindle / head | |
|---|---|
| Power (S1/100%) [kW] | 29 |
| Power (S6/40%) [kW] | 38 |
| Torque (S1/100%) [Nm] | 69 |
| Torque (S6/40%) [Nm] | 91 |
| Speed [1/min] | 24.000 |
| Tool holder | HSK - A63 |
| Other | |
|---|---|
| Clamping surface [mm] | 3.500x1.750 |
| Workpiece weight [kg] | 1.750 |
| Workpiece weight [kg/m2] | 7.000 |
| Feed rate [mm/min] | 40.000 |
| Acceleration [m/s2] | 4 |
| Machine weight [kg] | 64.600 |
Download technical data
