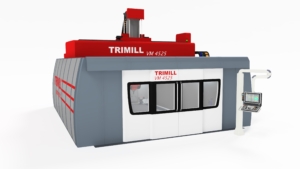

VM - 5-axis with changeable heads
- Automatic exchange of milling heads
- Up to 13 different milling heads to choose from – straight, angled, fork, universal
- 3-axis and/or 5-axis machining always with a specialized milling head
- Roughing and finishing in one clamping
- High performance and productivity
- X-axis modular extension (5.500, 6.500, 7.500, 8.500, …)
Standard machine parameters
| PARAMETRES | VM 4525 | VM 4535 | VM 4545 |
|---|---|---|---|
| Travels | |||
| X-Axis [mm] | 4.500 | 4.500 | 4.500 |
| Y-Axis [mm] | 2.500 | 3.500 | 4.500 |
| Z-Axis [mm] | 1.500 | 1.500 | 1.500 |
| Speed & Acceleration | |||
| Feed rates [mm/min] | 40.000 | 40.000 | 40.000 |
| Acceleration [m/s2] | 3 | 3 | 3 |
| Clamping surface | |||
| Machine table [mm] | 5.000 x 2.800 | 5.000 x 3.800 | 5.000 x 4.800 |
| Workpiece weight [kg/m2] | 7.000 | 7.000 | 7.000 |
| Machine dimensions | |||
| Lenght [mm] | 10.115 | 10.115 | 10.115 |
| Width [mm] | 7.005 | 8.005 | 9.005 |
| Depth [mm] | 6.245 | 6.245 | 6.245 |
| Machine weight [kg] | 103.900 | 109.900 | 115.800 |
